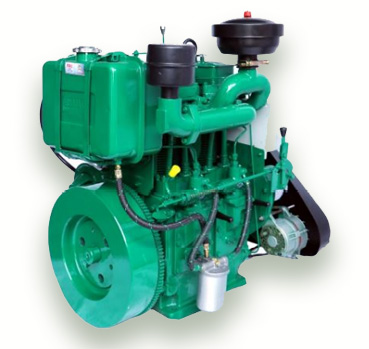

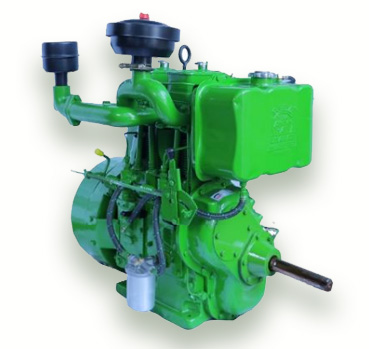

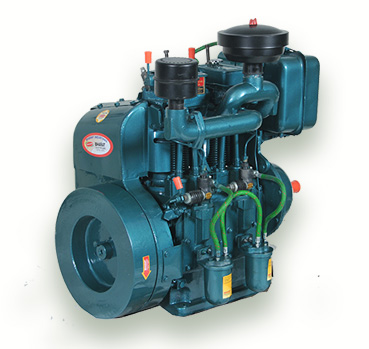

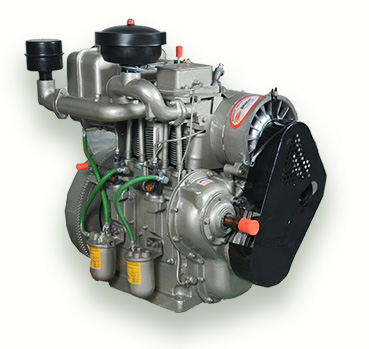

Double Cylinder High Speed Air Cooled Diesel Engine

B-12, Foundry Nagar, Hathras Road, Agra, INDIA

+91-562-2240053-58 [email protected]

Air Cooled Engine

16 HP (For Concrete Mixture)

20 HP (Blower Self Dynamo)

Model No.	Rated Output HP (kW)	Rated Speed (RPM)	No. of Cyl.	Bore x Stroke (mm)	Cubic Cap. (cc) Per cyl.	(SFC)	Weight
Model No.	Rated Output HP (kW)	Rated Speed (RPM)	No. of Cyl.	Bore x Stroke (mm)	Cubic Cap. (cc) Per cyl.	g / Kwh	Nett. (Kgs)	Gross (kgs)
ABI 8	10(7.35)	1500	2	80X110	553	251	270	365
ABI 9	15 (11)	1600	2	85X110	624	251	270	365
ABI 10	16 (11.8)	1500	2	87.5X110	661	251	270	365
ABI 11	18 (13.2)	1500	2	95X110	780	251	290	385
ABI 12	20 (14.7)	1500	2	102X110	947	251	295	390
