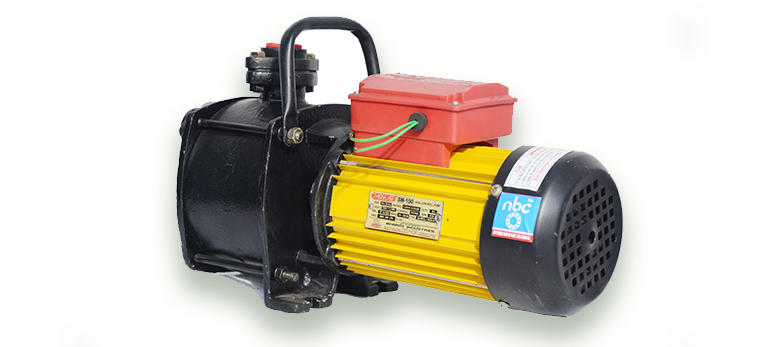

Shallow Well Water Pump

Material of construction

  • Impeller - Cast Iron
  • Suction Casing - Cast Iron
  • Mounting Casing - Cast Iron
  • Diffuser - Cast Iron
  • Motor Body - Aluminum Extrusion
  • Shaft - EN-8/SS

Features :

  • Self priming up to 8.5 meters.
  • 100% Copper winding.
  • With stand Wide voltage fluctuations froml 80volts to 240volts.
  • Low Power Consumption.
  • Thermal Overload Protector (TOP) prevents motors burning.
  • The Pump fitted with high quality and long life Avon mechanical seal.
  • Threaded impeller resulting consistent performance.
  • High quality aluminum extruded motor body for better heat dissipation
  • class ‘B’ insulation.
  • Double shielded ball bearing- no need of external Lubricant.
  • Capacitor inside terminal box.
  • Better aesthetics with compact design.
  • Easy maintenance with interchangeable spare parts.

Application

  • Water supply for domestic use in Bungalows, Apartments, Hotel Hospitals, Farm-houses etc
  • Useful in home pressure booster systems, lawn.
  • R O / Water treatment, car washing, small farms etc.

Product Snapshot

  • Heade : 6.52meters
  • Capacity : 4000-500 LPH
  • Power Rating : 0.37KW(0.5HP)-1.1KW(1.5HP)
  • Voltage Range : 180-240 Volts-Single Phase
  • 300-440 Volts - Three Phase

Performance Chart of Shallow well Pump 220v/230v Single Phase, 50 hz, 2800rpm, 2 pole

Model Power Pipe Size Rated Voltage (VOLT'S) Head in Meters.
- Kw Hp Suc Del - Dis. In Lph 6 9 12 15 18 21 24 27 30 33 36 39
Psw-50 0.37 0.5 25 25 220 3250 3180 3150 3100 2960 2630 2000 1510 1000 500 - -
Psw-75 0.75 1 25 25 220 3400 3300 3150 2900 2500 2100 1750 1400 1100 750 - -
Psw-100 0.75 1 25 25 220 3580 3450 3340 3300 3210 3150 3050 2780 2170 1570 - -
Psw-150 1.1 1.5 25 25 220 3650 3620 3580 3550 3500 3400 3300 2500 2070 1600 1080 700
