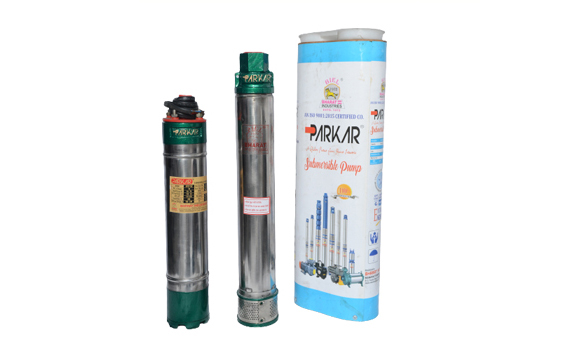

Submersible Pump

Material of construction

  • Motor body-Non magnetic Stainless steel
  • Bearing: SKF beanng no need external lubricants Cable Sealing, Water protecting device to assure
  • Cable Sealing : Water protecting device to assure outside Material does not enter into motor
  • Journal Bearing : Gun metal bush with 2% nickel and additional Centrifugal Molding process to avoid chance of warm out
  • Stator : Insulating warmish using vacuum impregnation method
  • Rotor : Aluminum pressure die cast

Pump Details

  • Bowl : Glass Filled Noryl
  • Impeller : Glass Filled Noryl quality abrasion resistance
  • Shaft : Stainless Steel
  • Seal : Avon makes carbon ceramic seal
  • NRV- FG-200 to reduce generated due to back pressure of long pipe line at the of switch off hence leading to increase in tie life of the pump.
  • CAUTION Before operating or Installing this purnp read this manual and follow all Safety Rules and Operating Instruction

Features

  • Starts easily with low voltage.
  • Submersible pump set perform wide voltage range.
  • Impeller and bowl are made from glass filled noryl that gives strong resistance against sand.
  • Higher motor efficiency and lighter body for better performance.
  • Products are available with NRV which reduce the thrust load of back pressure.
  • Dynamically balanced rotating parts to ensure minimum noise and vibration free operation.
  • All CI parts of submersible pump sets are power coated corrosion ,durability and alignment.
  • Al the hardware (including stud nuts)  is made of S 304, protecting them from corrosson in hard or sandy water, and makes them easier to repay and reliable
  • Motors are filled with high quality grade oil which gives lubrication to bearing too. This improves thermal conductivity which reduces chance of bearing

Performance of Oil Field Subersible Pumps set, 2 Pole 1 Phase 220 V

Model HP KW Pipe Size No. of stage Head in Meters
Discharge in LPM 0 5 10 20 30 40 45 50 60 65 70 75 80
4P0F10X 1 0.75 0 10 105 100 95 83 66 40 20 15 0 - - - -
4P0F12Y 1.5 1.1 12 12 113 107 100 90 80 66 55 45 20 10 0 - -
4P0F15Z 2 1.5 15 15 115 110 105 97 87 73 66 58 40 32 20 10 0
